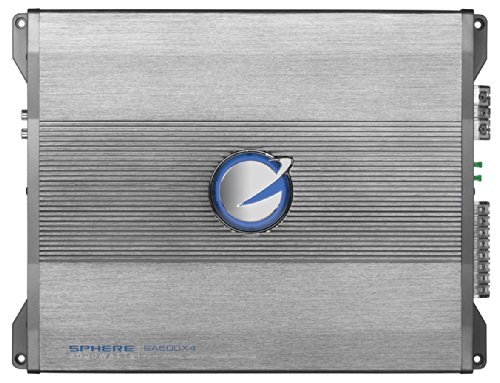

Planet Audio SA500x4 500-Watt 4-Channel Power Amplifier
View larger
CLASS A/B TOPOLOGY
A class A/B amplifier uses two groups of transistors and it is generally considered to be the best compromise of the two classes put together. Class ‘A’ and class ‘B’. A pure class ‘A’ amplifier typically has an enormous amount of current flowing through its output transistors with no audio signal. A pure class ‘B’ amplifier has NO current flowing through its outputs with no audio signal. This eliminates virtually all of the crossover distortion that’s possible with class ‘B’ amplifiers. A class A/B amplifier is much more efficient than a class ‘A’ but without the possible distortion of a class ‘B’.
MOSFET PWM (Pulse Width Modulated) POWER SUPPLY
Metal–Oxide–Semiconductor Field-Effect Transistor is a transistor used for amplifying or switching electronic signals. We use it in billions of them. In our computers, our telephones, game consoles, cars, electrical appliances and in this case, our Amplifiers. They are found in systems where information is processed or stored. A MOSFET is basically an electrical switch that allows the flow of electrical current. An electrical switch has two possible states, ON or OFF. This is where the MOSFET performs its most important role in our D Class amplifiers by allowing or preventing the flow of power and creating an efficient amplifier. The “Pulse Width Modulated” is a design that is significantly simplifies power supplies. It controls the output voltage and current precisely by not only removing the output current sensing loss, but also eliminating all secondary feedback circuitry. The PWM can increase efficiency, is lighter, smaller, can reduce total cost, productivity and system reliability.
GENERAL FEATURES
1. Thermal and Speaker Short Protection 2. 2 Ohm Stable Stereo Operation 3. Soft Turn-On Circuit 4. Remote Turn On / Turn Off Circuit 5. Variable Input Gain Control 6. Grey Anodized Heatsink 7. Nickel Plated RCA Low Level and High Level Inputs 8. LED Power and Protection Indicators 9. Remote Subwoofer Level Control
Bridgeable
Auto amplifiers increase power from the stereo to the speakers. Each channel of an amplifier is designed to power one speaker. Some amplifiers, called mono amps, have only one channel. Audiophiles (A person enthusiastic about high-fidelity sound reproduction) often use a mono amp to drive a single subwoofer, but there is a way to connect two amplifier channels to a single subwoofer. This is called bridging the amp, and it dramatically increases the power output to the subwoofer.
Variable Low-Pass Crossover
Subwoofers reproduce sound based on a number of different low-range frequencies. This process is called the crossover effect and occurs because the vast majority of audio systems cannot cover the entire spectrum sufficiently to minimize sound distortion and maintain an appropriate frequency ratio. In the case of our SA500X4 amplifier, a variable crossover is offered so that you, the listener, can have the ability to set the frequency at which the crossover occurs, thereby setting specific sound specifications for the bass frequency reproduction.
Variable High-Pass Crossover
Speakers also reproduce sound based on high, low or mid-range frequencies. High pass crossovers are geared specifically towards “highs” such as all size speakers, mid ranges and tweeters and in the same way as the low-pass crossover setting specific sound specifications such as the bass, mid-range and high frequency reproduction.
Variable Bass Boost
So you have Bass Boost and Variable Bass Boost. The difference between the two is that with Bass Boost you either have extra bass or you don’t. But with Variable Bass Boost you have the control of exactly how much BASS you want to pump out to your subwoofer(s). And this is what you get with the SA500X4 Amplifier. Variable Bass Boost.
Low And High Level Inputs
The SA500X4 has two different ways that you can get a signal into it. One is called Low level input and the other is called High level input. A low level input is measured in voltages. It comes in the form of RCA outputs from the back of your receiver and goes to the RCA inputs on your amplifier. A high level input is measure in wattages. It comes in the form one positive and one negative wire from the back of your receiver to and goes to the input terminal of your amplifier in the same wire form. Low-level (RCA) input wiring is preferred for best audio performance. Always use a high-quality RCA cable for best audio performance. NOTE: Do not connect BOTH the high level and low level inputs from your receiver to your amplifier at the same time!
View larger
The [TITLE] Details
- Amazon Sales Rank: #219357 in Car Audio or Theater
- Size: 18.00in. x 13.00in. x 4.50in.
- Brand: Planet Audio
- Model: SA500x4
- Dimensions: 2.40" h x 10.75" w x 14.00" l, 11.00 pounds
Features
- Max Power (2 Ohms): 500 Watts x 4
- RMS Power (4 Ohms): 100 Watts x 4
- Bridged Power (4 Ohms): 1000 Watts x 2
